Would a photograph of a core tell you which one has the lower exciting current?
Uniform edges and a clean stack are useful workmanship evidence. They are not a magnetic measurement.
Define what appearance can and cannot establish

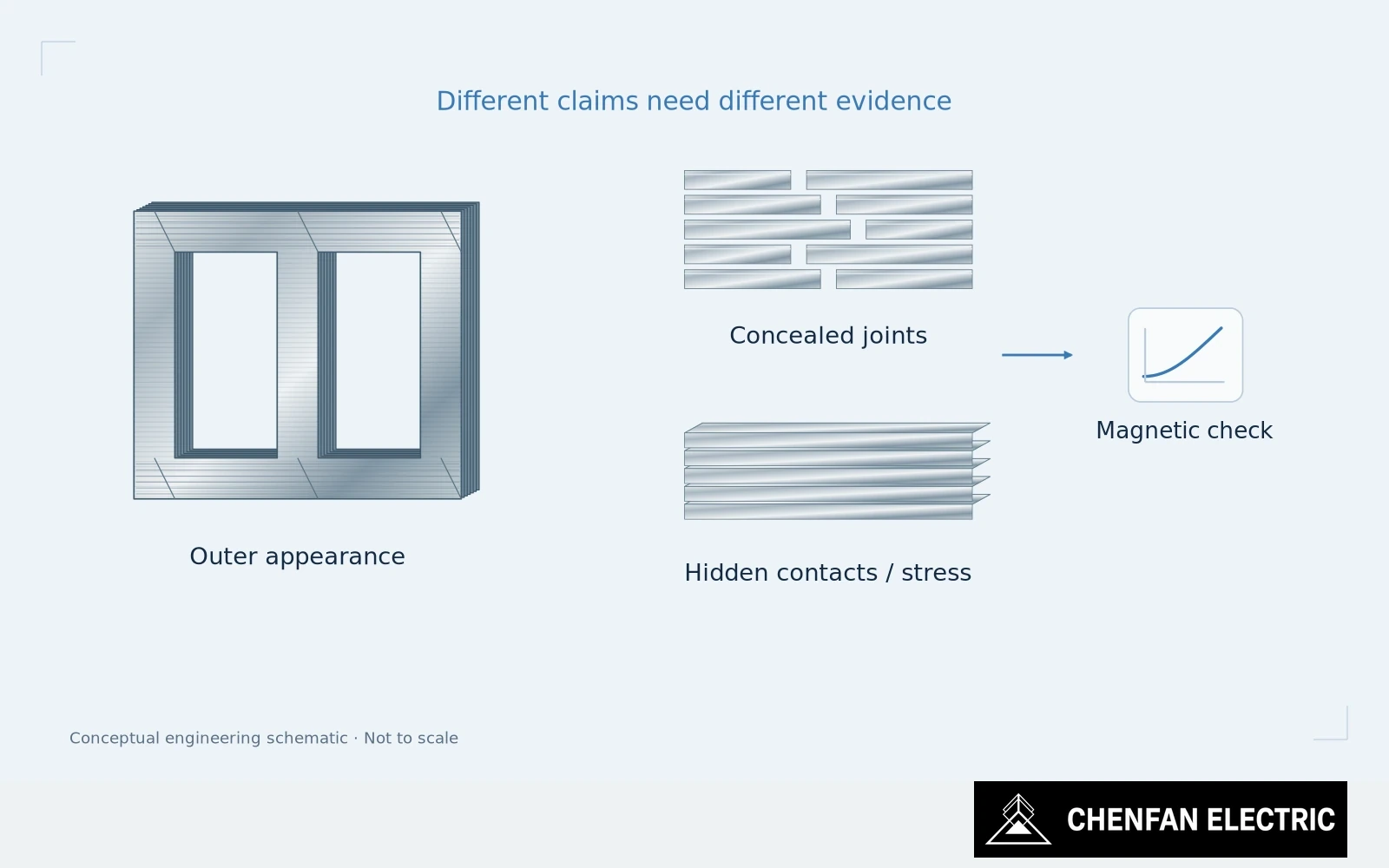

Several performance-relevant conditions are poorly visible from outside: the distribution of internal joint seating, local stress, the condition of concealed contacts and the actual excitation response. A neat outer envelope does not establish those quantities.
This is not an argument against visual inspection. It is an argument for giving it a defined job. Visual checks can identify displacement, contamination, accessible surface damage and deviations from an agreed assembly condition. Those findings can trigger further inspection before a problem becomes hidden.
The reverse mistake is to treat every visible difference as evidence of inferior magnetic performance. For its specified powercore insulation system, thyssenkrupp explicitly allows colour deviations without a change in properties. That product-specific statement is a useful reminder, not a licence to accept unknown corrosion or damaged coating.
Connect each observation to its functional consequence
A purchasing team should therefore avoid ranking suppliers from photographs alone. Differences in lighting, edge presentation or temporary protection can dominate the impression without revealing the electrical behaviour at the required operating point.
Use separate evidence for separate claims. A dimensional record supports geometry. A surface evaluation supports the relevant coating or cleanliness decision. A properly defined core test supports the measured magnetic response in that configuration.
Then connect the evidence where a real mechanism exists. A visibly displaced joint is relevant because its geometry may alter the magnetic path, not because it looks untidy. A decorative difference with no demonstrated functional consequence should not automatically receive the same disposition.
Retain independent magnetic and surface acceptance
The test itself still needs interpretation. A passing total-loss value is not permission to ignore an observed structural or insulation concern. The measurement has a boundary and may not answer the specific local question raised by inspection.
The practical result is a clearer acceptance conversation: what was observed, which function it could affect, and which evidence resolves that question. It prevents both cosmetic rejection of suitable material and aesthetic approval of an inadequately verified core.
Keep appearance in the quality plan. Just do not ask it to perform the work of a magnetic test, or ask the wattmeter to explain every mark on a lamination.
Practical takeaway
Visual workmanship cannot rank exciting current, and visible differences need not imply magnetic defects.
