Material traceability
Verify grade, thickness and coil identity before processing. Keep the material certificate connected to the production batch.
- Traceability
- Material certificate and coil identification
QAQuality
Quality control
Traceable material. Controlled dimensions and assembly. Finished-core inspection and documented delivery.
From material to dispatch
Four quality checkpoints
Dimensions & assembly
Check cut dimensions and burr height, then verify the assembled window, limbs, yokes, joint sequence and clamping interfaces.
- Production controls
- Burr <0.02 mm · Stacking factor >97%
Finished-core testing
Finished-core electrical testing is defined by the specified excitation conditions, measurement method and acceptance limits.
- Test basis
- Project-specific test specification
Delivery records

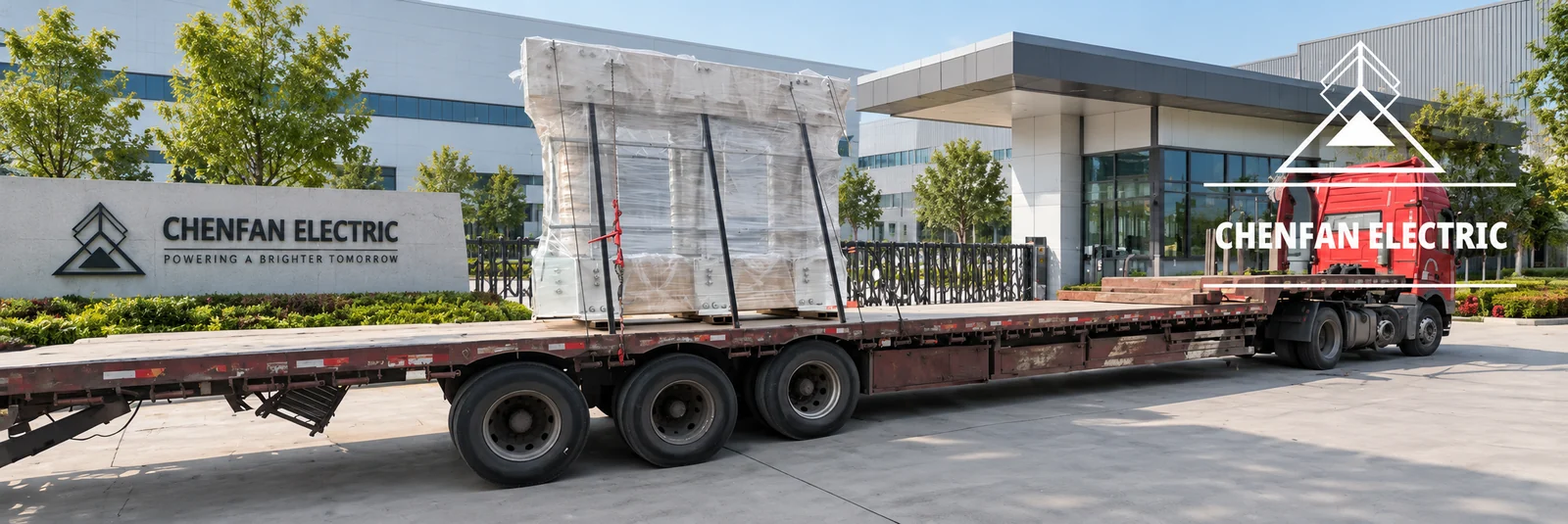

Review the inspection file, package identification, transport protection and handling information before dispatch.
- Delivery file
- Required inspection and packing records
Material loss data and finished-core test results are separate records. The order defines the inspection scope, test conditions and documents supplied.
Apply these checkpoints to the agreed transformer core manufacturing and supply scope. For cut lamination orders, define piece dimensions, identification and inspection records before release.
RFQTechnical review
Define the inspection scope
State the drawing revision, acceptance criteria, required records and any witness point in the enquiry.
